AEM Infinity Series 7 Programmable Engine Management System

  • Sale
  • $2,505.89
  • Regular price $2,568.07

Product SKU: AEM 30-7101

Features

  • Airflow model based (VE) tuning
  • ECU Set Up Wizard simplifies start up
  • Flex fuel compatible
  • Multi fuel capable
  • Drive by wire
  • Variable valve control
  • Multiple boost control strategies
  • Nitrous control
  • Map switching
  • Dual internal Lambda controllers
  • Dual knock sensing circuits
  • Data logging up to 64GB, up to 100 channels at 1KHz
  • Outputs to 3rd party dashes and data loggers
  • Industry leading data transfer speed (up to 480Mb/sec)
  • Integrated engine protection strategies

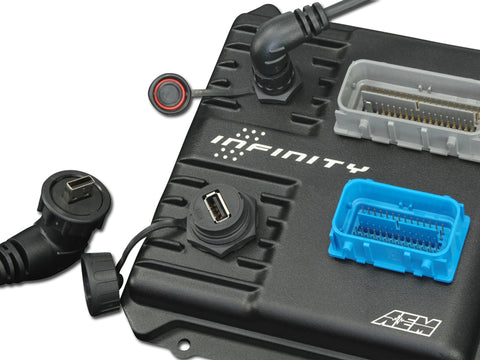

  • Sealed enclosure and IP67 rated comms ports

The Infinity ECU delivers state-of-the-art programmable EFI control capabilities typically found only at upper echelons of Motorsports. Through the Infinity ECU, AEM makes this technology affordable for both professional race teams and amateur racers.

Each Infinity ECU includes ignition coil outputs and injector drivers equivalent to its name. The Infinity's airflow-based tuning models simplify startup and speed up the tuning process by eliminating many of the lookup and trim tables (Correction Tables) necessary in previous generation ECUs. For a limited time, all Infinity systems come fully enabled without the need for feature add-on purchases. Combined with AEM's industry-leading after-purchase support system, including free technical support, the Infinity is the ultimate engine control solution for both professional race teams and weekend track cars.

Infinity's airflow model-based systems greatly reduce the amount of time it takes to set up and tune an engine by eliminating many of the lookup and trim tables (correction tables) necessary in previous generation ECUs. The Infinity's airflow based, or volumetric efficiency (VE) based models calculate an engine's requirements in real time based on an advanced algorithm that has various modes for calculating air flow. Once the user inputs an engine's basic parameters (displacement, cylinders, ignition type, and firing order) and methods of calculation for airflow and ignition they can begin setting the engine's VE table in the software.

SPECIFICATIONS
INFINITY 708
PN: 30-7101
INFINITY 710
PN: 30-7103
INFINITY 712
PN: 30-7111
2-Stroke Engines
Yes
Yes
Yes
4-Stroke Engines
Yes
Yes
Yes
Cylinders
Up to 8
Up to 10
Up to 8
High Impedence Injectors
Up to 8
Up to 10
Up to 12
High Impedence Injectors (Sequential)
Up to 8
Up to 10
Up to 8
Low Impedence Injectors
Up to 8
Up to 10
Up to 12
Low Impedence Injectors(Sequential)
Up to 8
Up to 10
Up to 8
Coils (0-5V Falling Edge)
Up to 8
Up to 10
Up to 8
Digital Inputs
Up to 8
Up to 8
Up to 8
VR/Mag Inputs
Up to 6
Up to 6
Up to 6
Analog Voltage Inputs
Up to 17
Up to 17
Up to 17
Analog Temp Inputs
Up to 6
Up to 6
Up to 6
Knock Control
2-Channel
2-Channel
2-Channel
On Board Wideband Air/Fuel Controllers
2
2
2
Drive-By-Wire
Dual
Dual
Dual
H-Bridge Channels
2
2
2
High Side Outputs
Up to 2
Up to 2
Up to 2
Low Side Outputs
10
10
10
Low Side Outputs that can be PWM
10
10
10
4-Wire Stepper Motor Control
Yes
Yes
Yes
CAN Channels
2
2
2
Boost Control (RPM, Time, Gear, VSS, Switch Input, Flex Fuel Content)
Yes
Yes
Yes
Variable Cam Control
Up to 4
Up to 4
Up to 4
Engine Protection*
Yes
Yes
Yes
Launch Control
Yes
Yes
Yes
Nitrous Control
Up to 4-Stage
Up to 4-Stage
Up to 4-Stage
Traction Control
Up to 4-Wheel Speed
Up to 4-Wheel Speed
Up to 4-Wheel Speed
Data Logging
Up to 64GB
Up to 64GB
Up to 64GB
Weather Resistant Sealed Electronics
Yes
Yes
Yes
Connector Pins
129
129
129

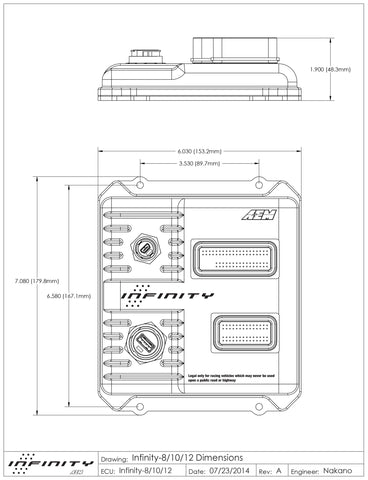

Enclosure Dimensions
6.75" x 6" x 1.8"
6.75" x 6" x 1.8"
6.75" x 6" x 1.8"
Weight
24oz / 680.4g
24oz / 680.4g
24oz / 680.4g

* Engine protection is programmable and can be coolant temp-, oil temp-, oil pressure-, AFR vs MAP, intake air temp-, knock- or fuel pressure-based.
