Haltech NEXUS R5 VCU Programmable Vehicle Control Unit with Universal Wire-In Harness Kit

  • Sale
  • $4,858.00
  • Regular price $4,885.00
  • 4 available

Product SKU: HAL HT-195200

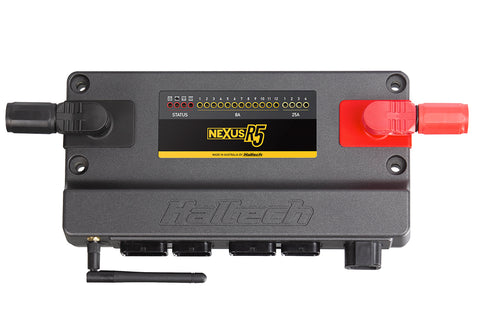

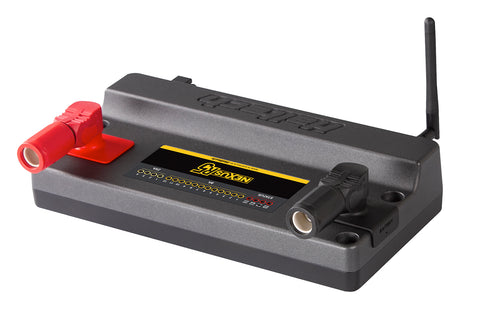

NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).


  • 4x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
  • 12x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
  • 18x peak/hold injector drivers (can be used as low side drive outputs)
  • 12x low current ignition outputs (can be used as low side drive outputs)
  • 8x low side drive outputs, PWM capable (DPOs)
  • 4x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 23x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 10x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 2x onboard wideband controllers, supporting NTK and LSU4.9
  • 3x CAN ports with switchable termination
  • Built-in accelerometer and digital oscilloscope
  • Laptop and on board data logging with up to 300 channels per log

Additional Controls

  • Long Term Learning
  • Stepper Motor Control
  • 4D Closed Loop Boost Control
  • Closed Loop CO2 Control
  • Rotational Idle
  • Launch Control
  • Traction Control
  • Anti-Lag
  • Dual Knock Control
  • Trans Brake Control
  • Race Timer
  • Multi Stage Fuel Injection
  • Multi-level Engine Protection
  • 6 Stage Nitrous Control
  • 4-sensor variable cam control
  • Intake Air Bleed Control
  • Flat Shift Control
  • Shock Travel & Ride Height Control
  • Advanced Torque Management

Compatible Automatic Transmissions

  • Ford AODE/4R70W
  • GM 4L60E
  • GM 4L80E
  • Toyota A340E
  • Lenco
  • Liberty

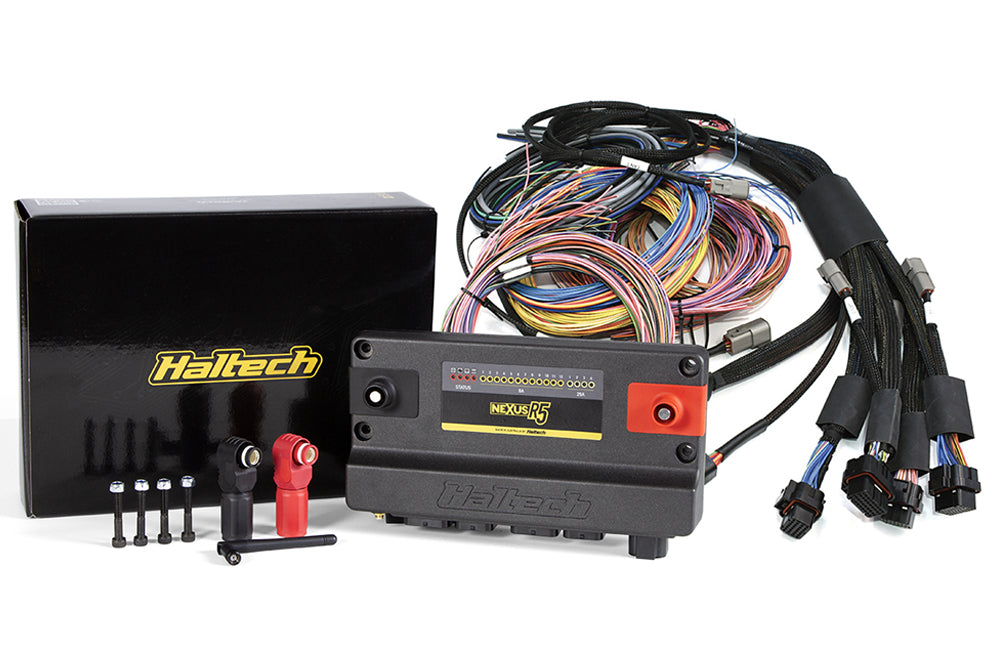

Package Includes

  • NEXUS R5 Vehicle Control Unit
  • SurLok connectors (Red and Black)
  • Wi-Fi antenna
  • mounting bolts
  • USB-C Cable
  • USB-C dust cap
  • USB drive with NSP Software
  • Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4

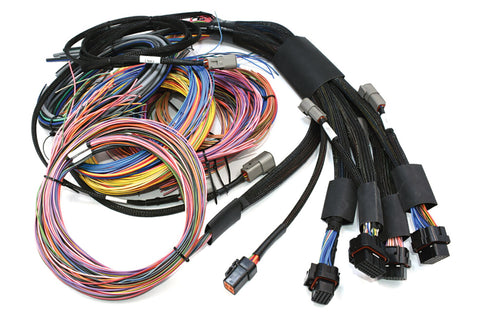

  • NEXUS R5 universal engine wiring harness
  • Fire wall grommet 2.5in (63.5mm)
