LinkECU

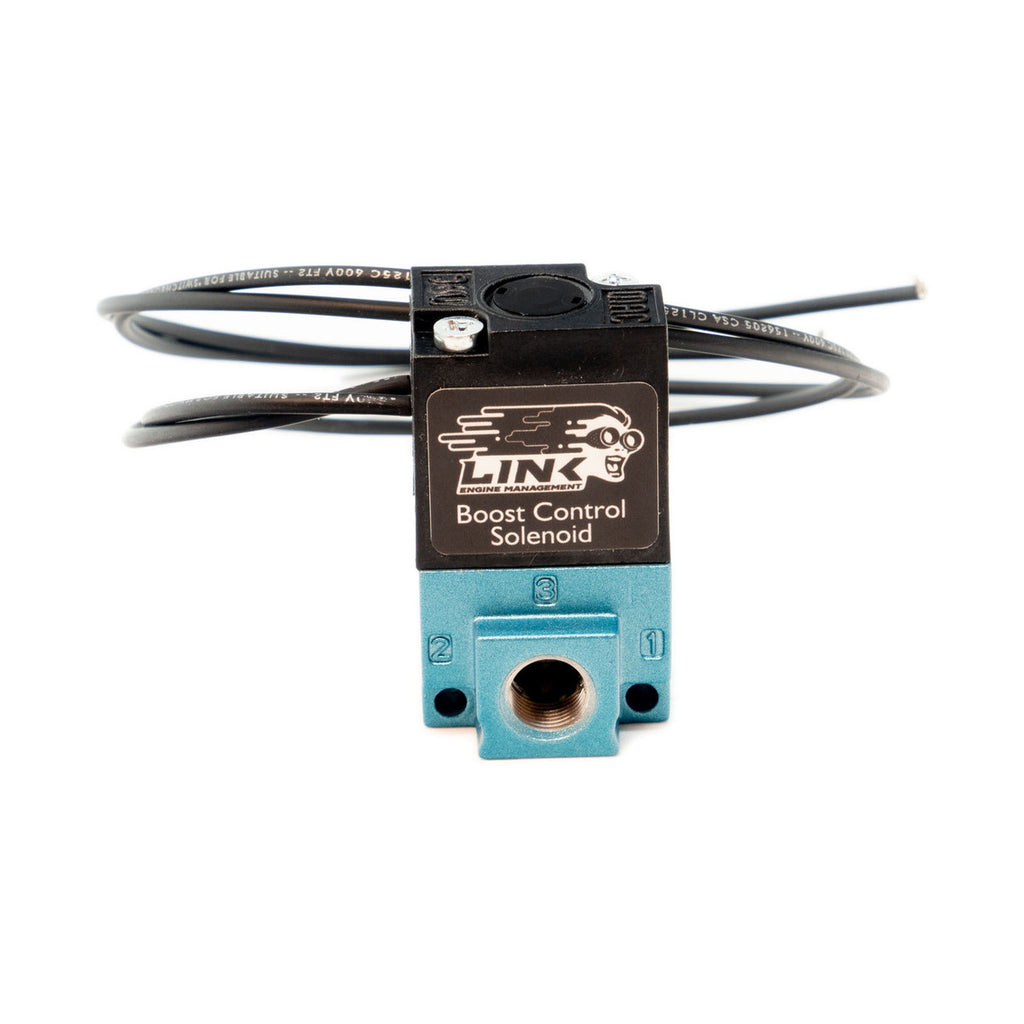

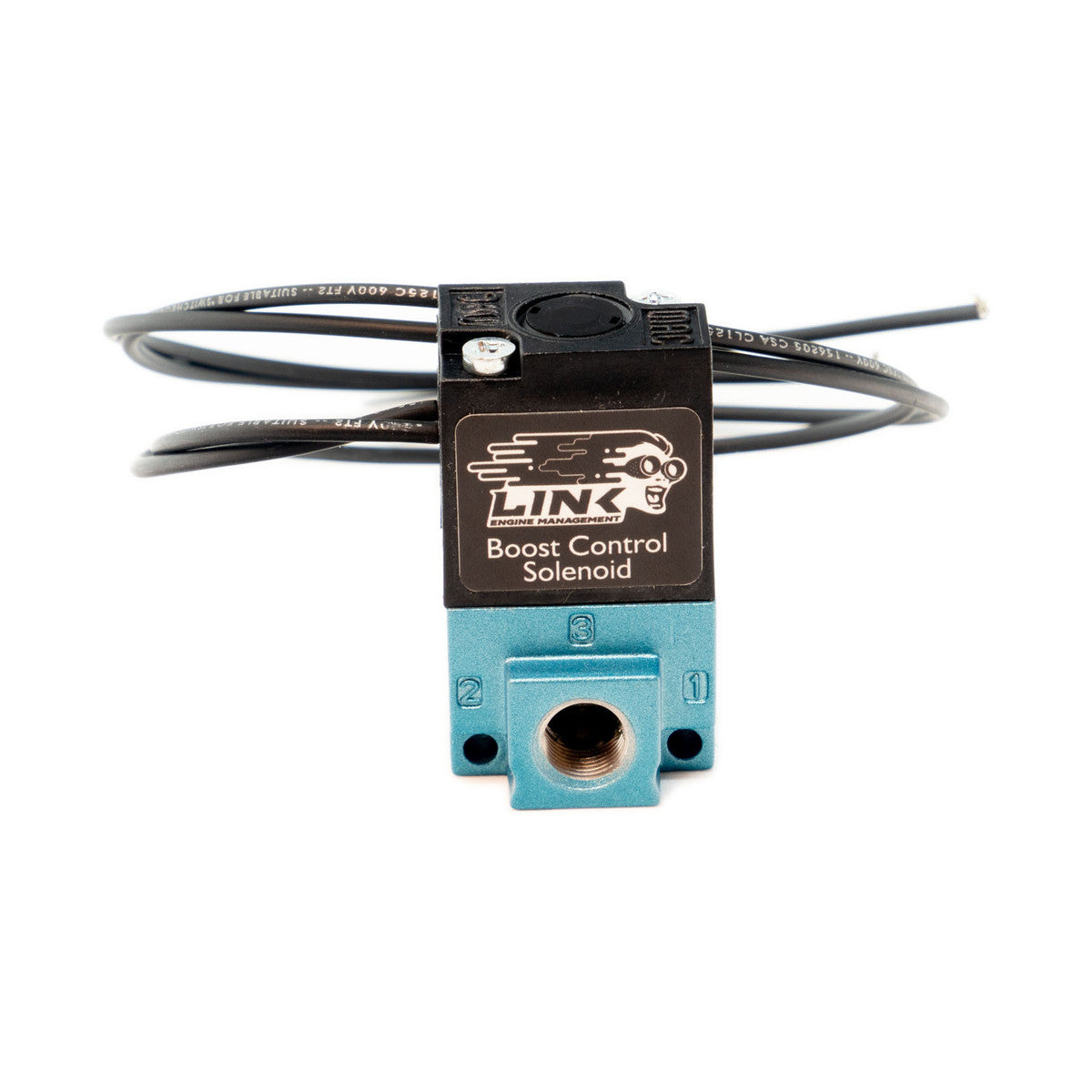

Link ECU Boost Control Solenoid 3-Port

  • Sale
  • Regular price $140.00

Product SKU: LNK 3BCS

More boost? Of course and Link's 3 port boost control solenoid will help you do it.

Link's 3 port boost control solenoids are the go-to for the majority of boost control applications, they allow for precise control of boost and boost levels can be raised to around 2-3 times the spring pressure of the wastegate.

For higher boost applications consider Link's 4-Port boost control solenoid.

Features:

  • Compatible with all Link ECU’s
  • Can be used with single or multiple wastegates (Using T junction)
  • Compatible with internal or external wastegates
  • Fast and consistent response times
  • High shifting forces
  • MAC 35 series – Rugged, reliable and long operational life
  • Short stroke, high flow
  • Balanced poppet, immune to variations of pressure

Link recommends starting with a PWM Frequency of 20Hz for this Boost control solenoid. (A detailed description of setting up boost control can be found in the help file in the PCLink software.)

Specifications:

  • MAC 35 series
  • 120 PSI max
  • 1/8” BSPPL
  • 12 VDC (5.4W)
  • 18” (45cm) coil leads
  • Includes 3 x 1/8” BSP hose tail fittings for easy connection
