Overview

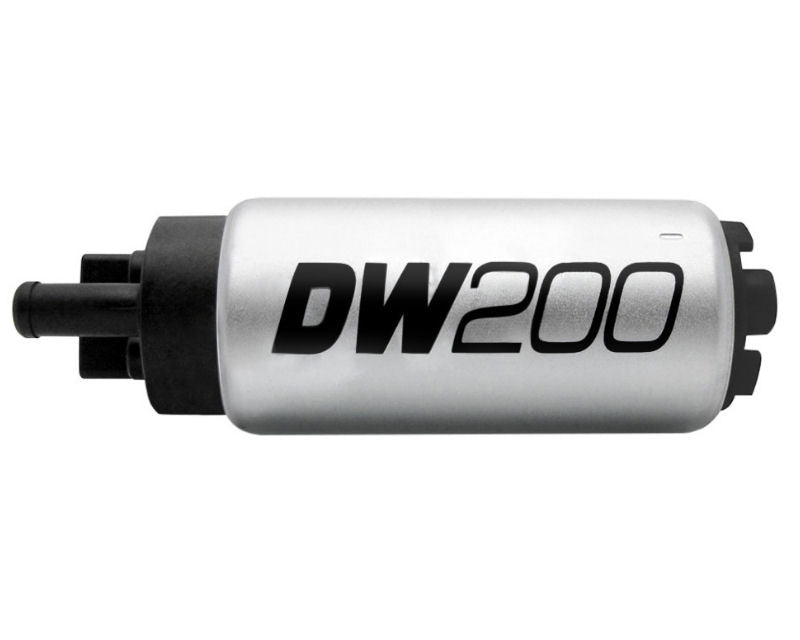

Introducing the DW200 in-tank fuel pump which has all the all the benefits of the DW300 in a lower priced, lower flowing package. The DeatschWerks DW200-series fuel pumps have been specifically designed and tested for compatibility with gasoline and ethanol.

DeatschWerks in-tank fuel pumps are manufactured with a quiet and reliable turbine impeller which is compatible with pulse width modulated pump drivers. These pumps are also built with carbon commutators and fully encapsulated armatures for ethanol compatibility. DW’s high-torque motors maintain flow at higher pressure better than competitors’ pumps. Low amperage draw minimizes pump temperatures, maximizes pump life and reduces stress on OE wiring. Vehicle-specific pumps include a fitment kit assembled with everything you need for your application. Vehicle specific install instructions are also available on DeatschWerks's website to walk you step-by-step through the installation process.

Features

• Flows 255+ litres per hour
• 13.5v, 9.2 amps @ 40psi and 11.6 amps @ 80 psi.
• In-tank application specific fitment
• Ethanol compatible
• 3-year no-fault warranty
• Quiet and reliable turbine impeller

Just like its fuel injectors, every single DeatschWerks fuel pump undergoes multi-point performance testing by a trained technician to ensure it meets DeatschWerks and customers high standards. Although it is a labor intensive process, it gives customers confidence right out of the box.

Performance testing includes:

• Flow at pressures of 40psi, 60psi, 80psi and 100psi
• Amperage draw at each pressure
• PRV activation point
• Check valve function
• Cavitation
• Qualitative observations

DeatschWerks, LLC, founded in 2004, is a company dedicated to providing high-performance fuel system solutions. Located in Oklahoma City, Oklahoma, DW operates out of its own 36,000 sq. ft. facility that houses all of the company's functions including design, end-manufacturing, quality assurance, sales, marketing, and administration. DeatschWerks' roots were established by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300 the first in-tank fuel pump to outflow the standard 255 LPH pump. Since then, DW has developed innovative fuel system components such as the in-line 250iL and 350iL pumps, modular surge tanks, conversion fuel rails, dual-stage fuel filters, and ethanol compatible fuel pressure regulators. Today, the DeatschWerks line-up of fuel system components includes over 500 SKUs covering Sport Compact, Modern Muscle, and Euro applications.

Vehicle Fitment

• 1989–1994 Nissan 240SX (S13, 2.4L KA24E / KA24DE / SR20DET)
• 1991–1996 Infiniti Q45 (4.5L VH45DE)
