Haltech 3 Bar Motorsport MAP Sensor

  • Sale
  • $145.00
  • Regular price $152.00
  • 3 available

Product SKU: HAL HT-010134

The Haltech 3 Bar Motorsport MAP Sensor reads up to 4 Bar absolute pressure. This heavy duty motorsport sensor is suitable to measure intake manifold pressure on turbocharged or supercharged applications up to 2-bar / 29 psi of boost pressure.


  • Easy to mount via 2 bolt holes
  • Compact sensor enclosure
  • Mechanical connection via 4mm (3/16") hose connector nipple
  • Utilizes Haltech calibration file "MAP - 3 Bar Motorsport HT010134.cal" file

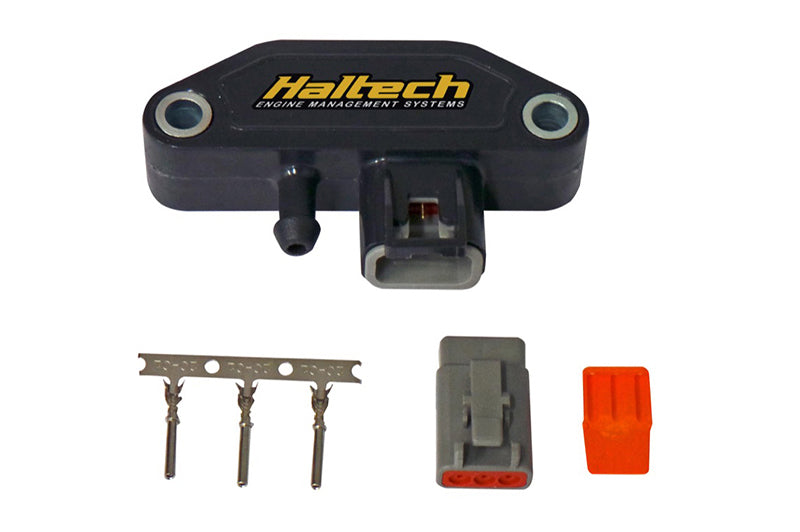

Package Includes:

  • 1x Haltech Motorsport 3-Bar Map Sensor (1/8NPT)
  • 1x Matching male Deutsch DTM-3 Connector kit (HT-031001)

Note: Map sensor should be mounted higher than the intake manifold port that the hose connects to
