Haltech GPS Speed Input module converts GPS Speed to a pulsed digital output. Using data received from the Global Positioning Satellite network, the GPS Speed Sender calculates three-dimensional ground speed and provides a pulsed output similar to that of a mechanical speed sender.

These modules are an ideal replacement for mechanical speed senders and can be used in applications that require a digital speed signal. You can have accurate GPS based speed inputs to any device which requires a digital speed signal such as speedometers, dash displays, ECU's and data loggers.

Features

• Provides accurate GPS based speed output
• Can be calibrated for different applications
• Ideal for speedometer, dash displays, ECU and data logging inputs
• Calibration can be changed using ESP software

Specifications

• Antenna wire length - 300mm
• Outputs - 0v to 12v Pulsed Output
• Default 5000 pulses per kilometer

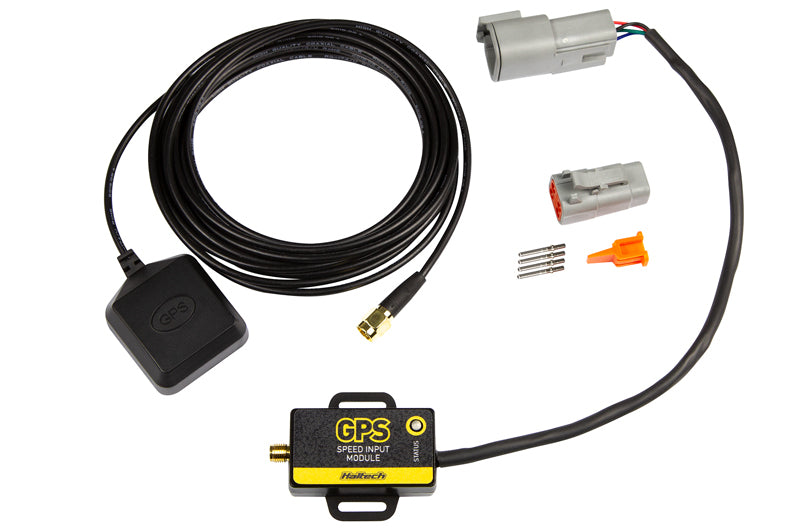

Package Includes

• GPS Speed Input Module
• GPS Antenna
• Matching male DTM-3 Connector and pins
