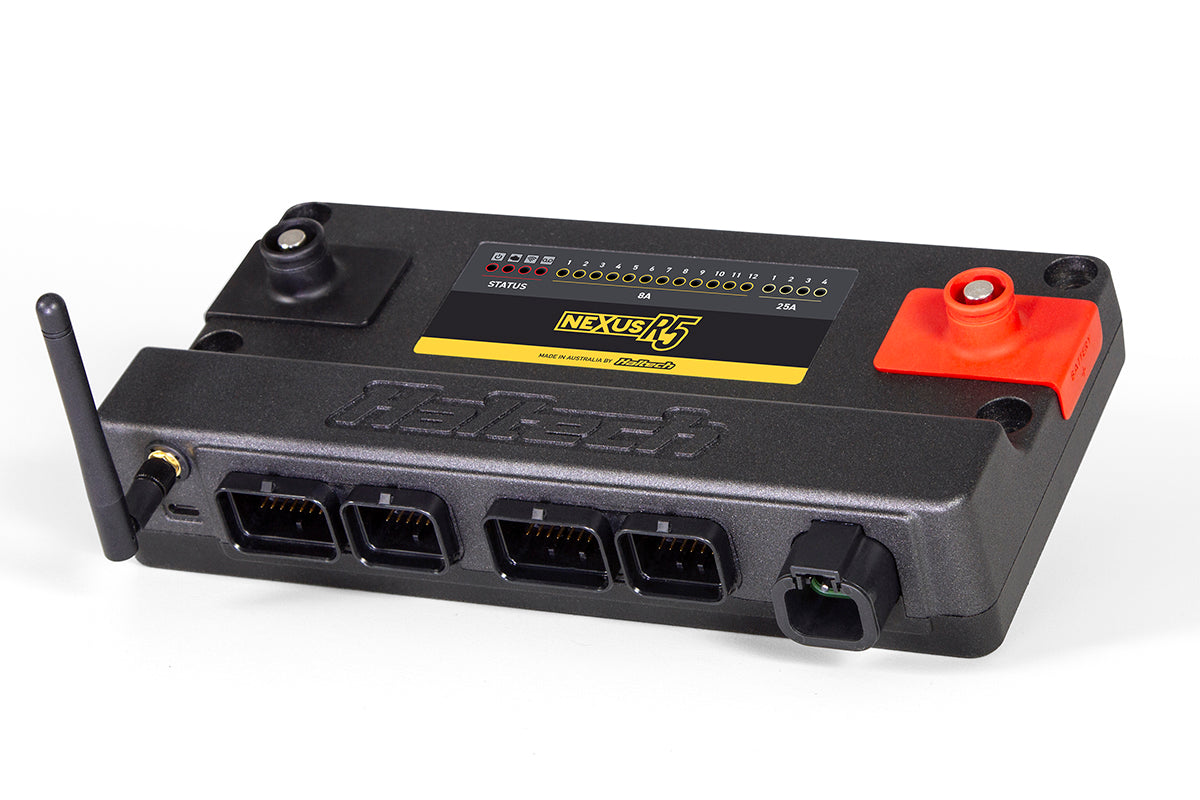

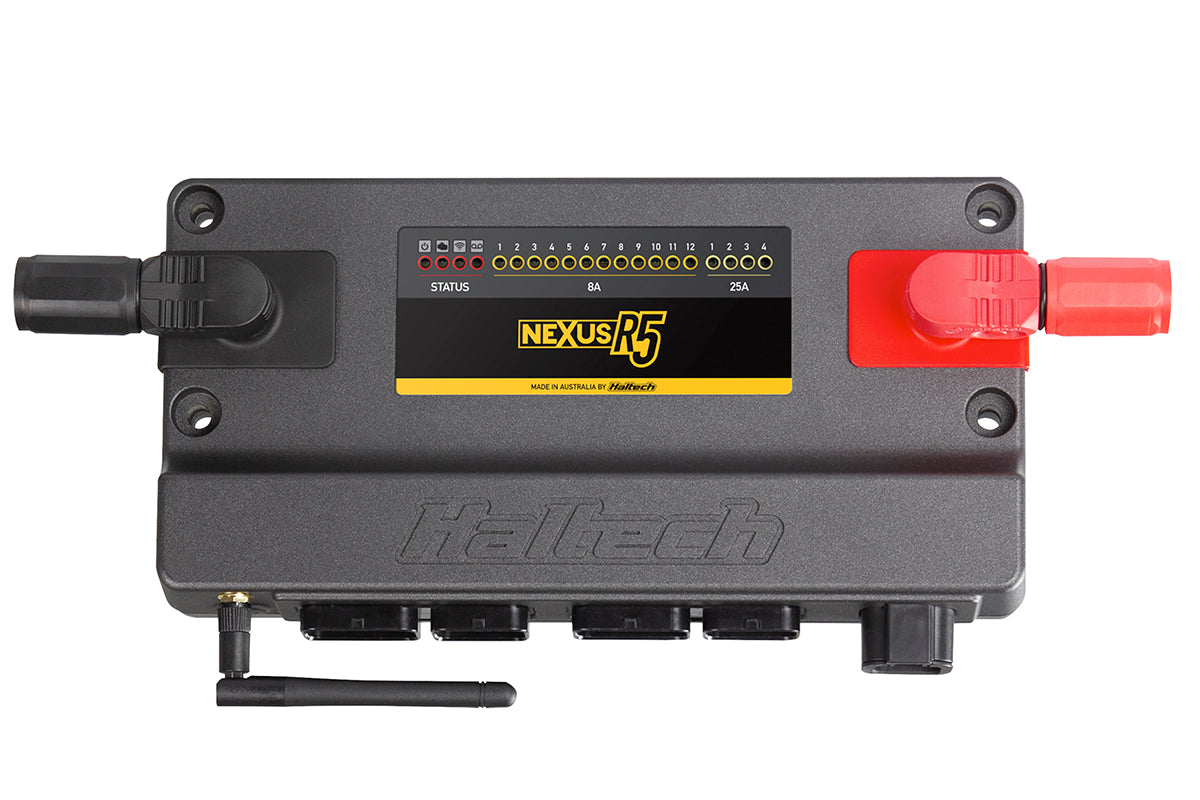

NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

Features

• 4x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
• 12x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
• 18x peak/hold injector drivers (can be used as low side drive outputs)
• 12x low current ignition outputs (can be used as low side drive outputs)
• 8x low side drive outputs, PWM capable (DPOs)
• 4x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
• 23x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• 10x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
• 2x onboard wideband controllers, supporting NTK and LSU4.9
• 3x CAN ports with switchable termination
• Built-in accelerometer and digital oscilloscope
• Laptop and on board data logging with up to 300 channels per log

Additional Controls

• Long Term Learning
• Stepper Motor Control
• 4D Closed Loop Boost Control
• Closed Loop CO2 Control
• Rotational Idle
• Launch Control
• Traction Control
• Anti-Lag
• Dual Knock Control
• Trans Brake Control
• Race Timer
• Multi Stage Fuel Injection
• Multi-level Engine Protection
• 6 Stage Nitrous Control
• 4-sensor variable cam control
• Intake Air Bleed Control
• Flat Shift Control
• Shock Travel & Ride Height Control
• Advanced Torque Management

Compatible Automatic Transmissions

• Ford AODE/4R70W
• GM 4L60E
• GM 4L80E
• Toyota A340E
• Lenco
• Liberty

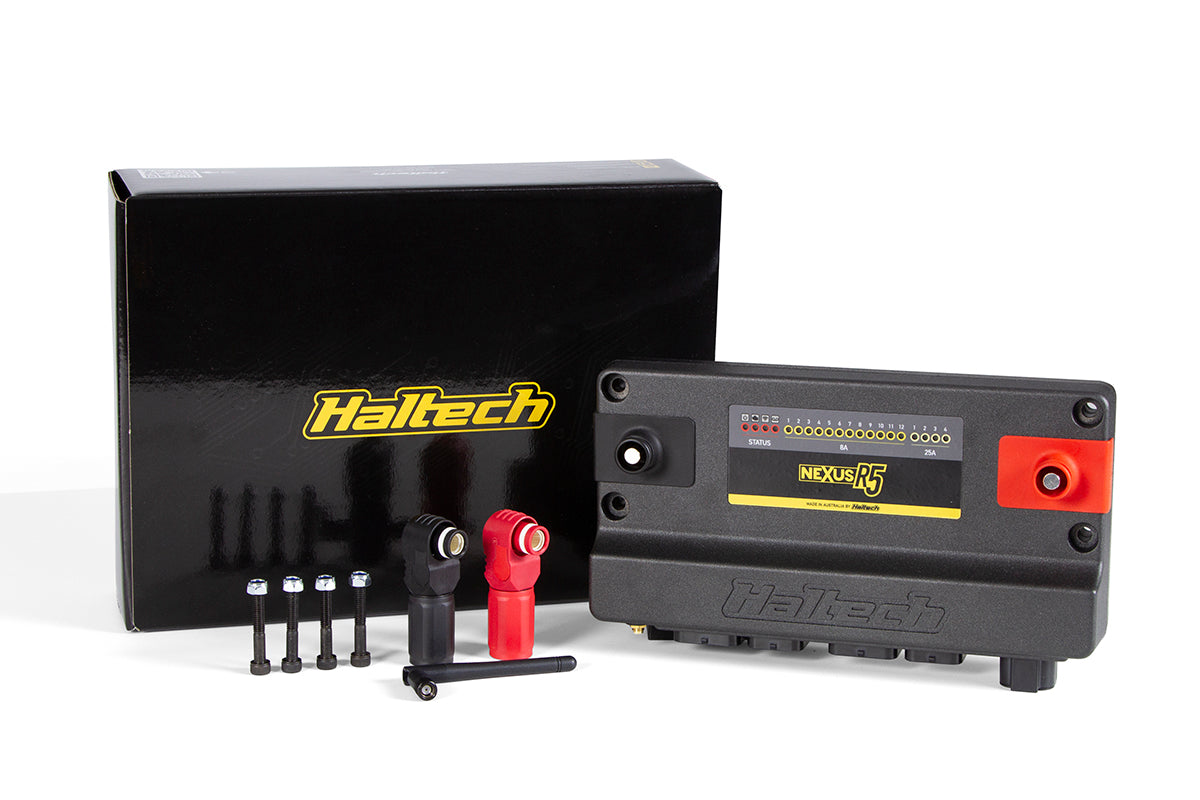

Package Includes

• NEXUS R5 Vehicle Control Unit
• SurLok connectors (Red and Black)
• Wi-Fi antenna
• mounting bolts
• USB-C Cable
• USB-C dust cap
• USB drive with NSP Software

Note: This is the NEXUS R5 VCU only. Additional wiring harness, connectors, etc are sold separately.
