Product SKU: IDX 1050.60.14.14.4
Injector Dynamics provide the absolute best fuel injectors available, and have quickly become the standard for tuners and car builders worldwide. Injector Dynamics fuel injectors are the result of batch testing large quantities of specially modified fuel injectors, and then carefully matching them into sets based on their dynamic flow across the pulse width range. The result is vastly superior cylinder to cylinder consistency, even at very low pulse widths.
In addition to receiving tightly matched injectors, you will be provided with dead time compensation values across the entire pressure and voltage range of the injector. This data will insure that the compensations in your ECU work properly, and your air fuel ratios will remain consistent as atmospheric or voltage conditions change.
Included with kits are the clips and pins that fit the Injector Dynamics Injectors. You can either re-pin your factory harness or purchase the optional plug and play adapters.
Features
- The ID1050x is the latest evolution of the ID1000 injectors
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors
- Improved internal flow path increases output by 5% without sacrificing low flow performance
- Stronger magnetic circuit offers stable operation up to 10 bar
- Replaceable inlet filter extends service life
Basic Specifications
- Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
- Fuel Compatibility – Compatible With All Known Fuels
- Electrical Connector – USCAR

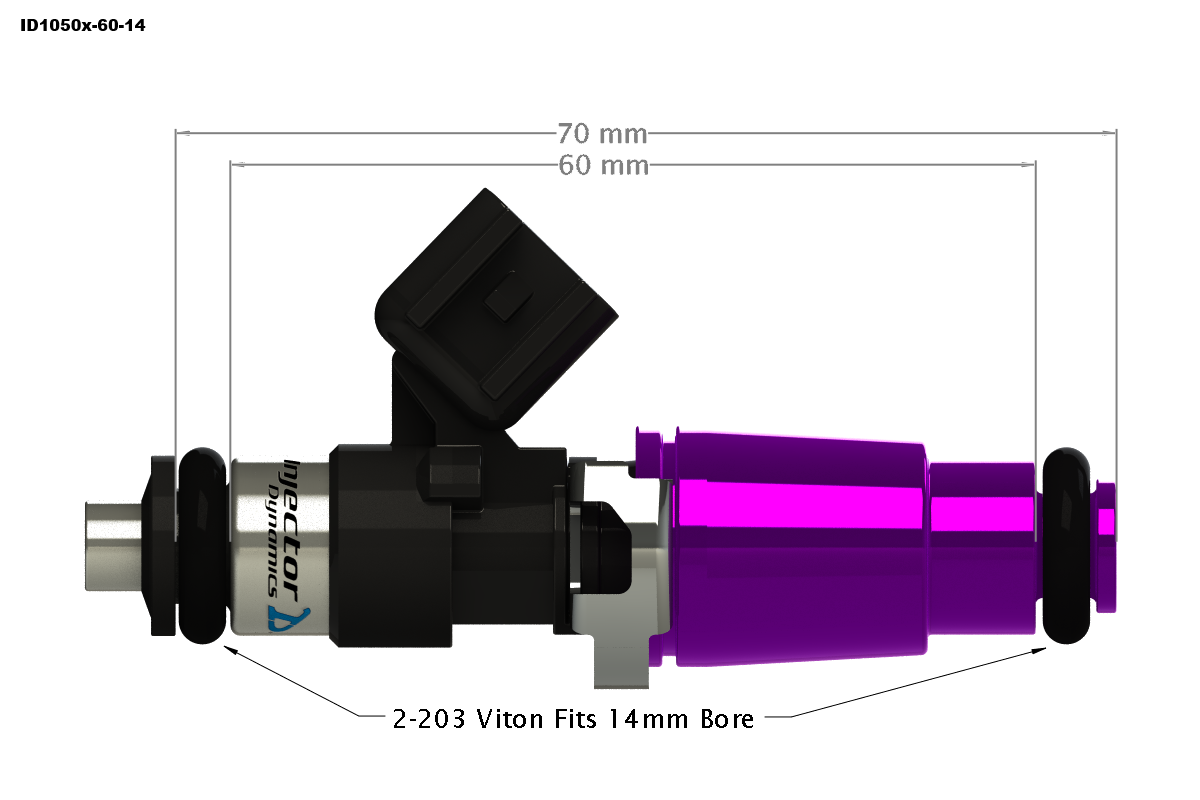

Injector Dimensions
- Top O-ring: 14mm
- Bottom O-ring: 14mm
- Overall Length: 60mm
Package Contents

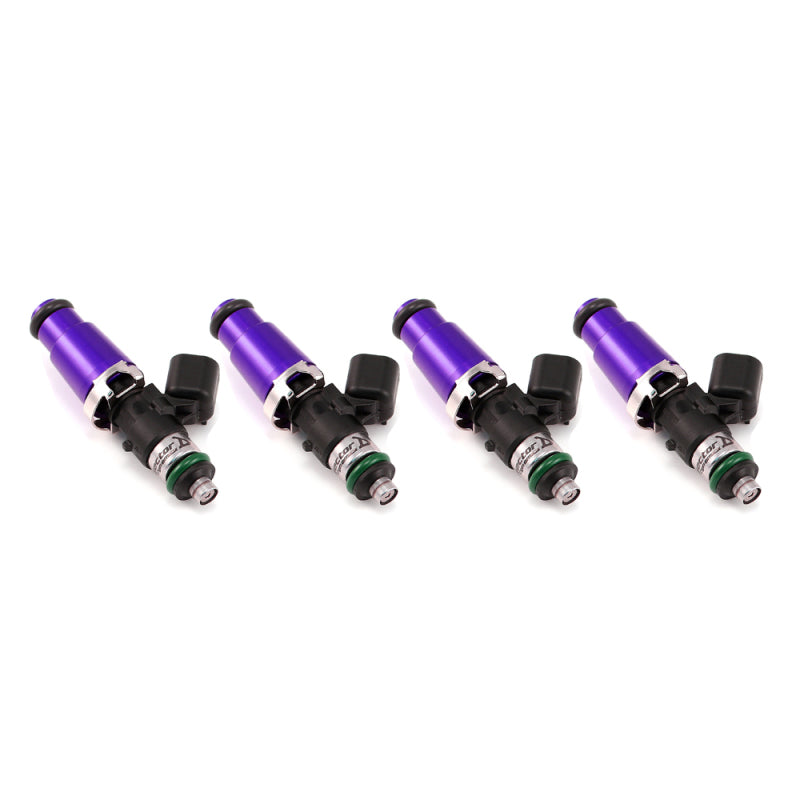

- 4 top-feed injectors
- 4 wire-in connectors
Application
- Nissan 240SX (S13/S14/S15)
- Nissan SR20DET FWD
- 1991-1996 Infiniti G20 SR20DE
- 1999-2002 Infiniti G20 SR20DE
- 1989-1993 Toyota Celica All-trac 3S-GTE
- 1990-1996 Toyota MR2 Turbo 3S-GTE
- 2013-2014 Hyundai Genesis 2.0t
- 1988 BMW E30 M3
