Injector Dynamics provide the absolute best fuel injectors available, and have quickly become the standard for tuners and car builders worldwide. Injector Dynamics fuel injectors are the result of batch testing large quantities of specially modified fuel injectors, and then carefully matching them into sets based on their dynamic flow across the pulse width range. The result is vastly superior cylinder to cylinder consistency, even at very low pulse widths.

In addition to receiving tightly matched injectors, you will be provided with dead time compensation values across the entire pressure and voltage range of the injector. This data will insure that the compensations in your ECU work properly, and your air fuel ratios will remain consistent as atmospheric or voltage conditions change.

Included with kits are the clips and pins that fit the Injector Dynamics Injectors. You can either re-pin your factory harness or purchase the optional plug and play adapters.

Features

• The ID1050x is the latest evolution of the ID1000 injectors
• Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels
• Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors
• Improved internal flow path increases output by 5% without sacrificing low flow performance
• Stronger magnetic circuit offers stable operation up to 10 bar
• Replaceable inlet filter extends service life

Basic Specifications

• Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
• Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
• Fuel Compatibility – Compatible With All Known Fuels
• Electrical Connector – USCAR

Package Contents

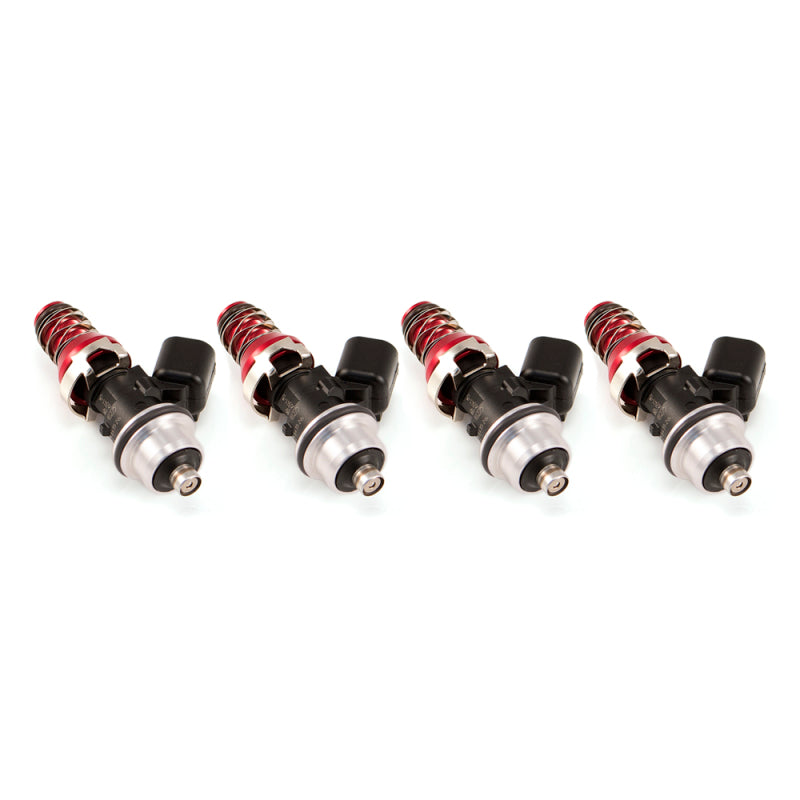

• 4 top-feed injectors
• 4 wire-in connectors

Application

• 2000-2005 Honda S2000 AP1 F20C
• 2006-2009 Honda S2000 AP2 F22C
