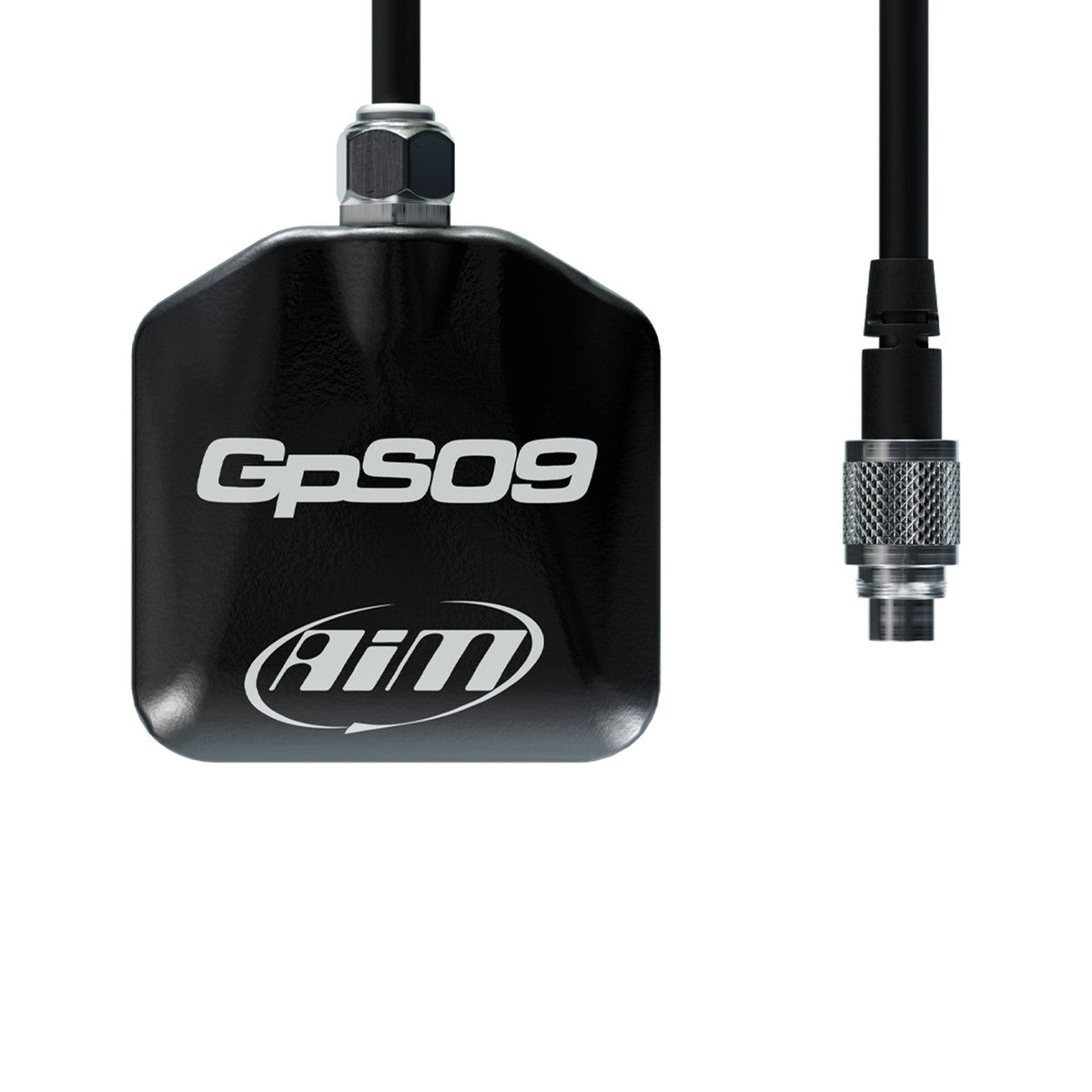

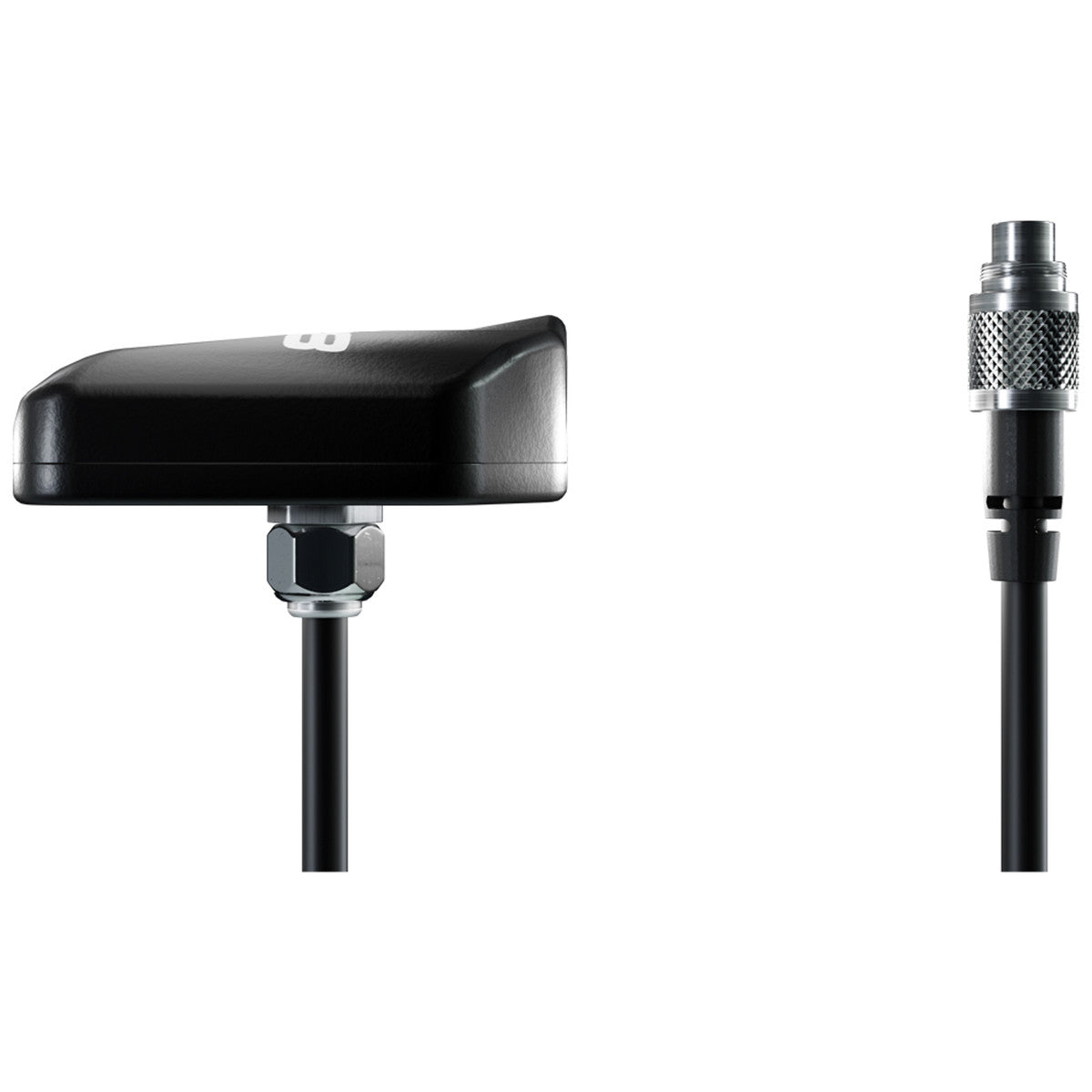

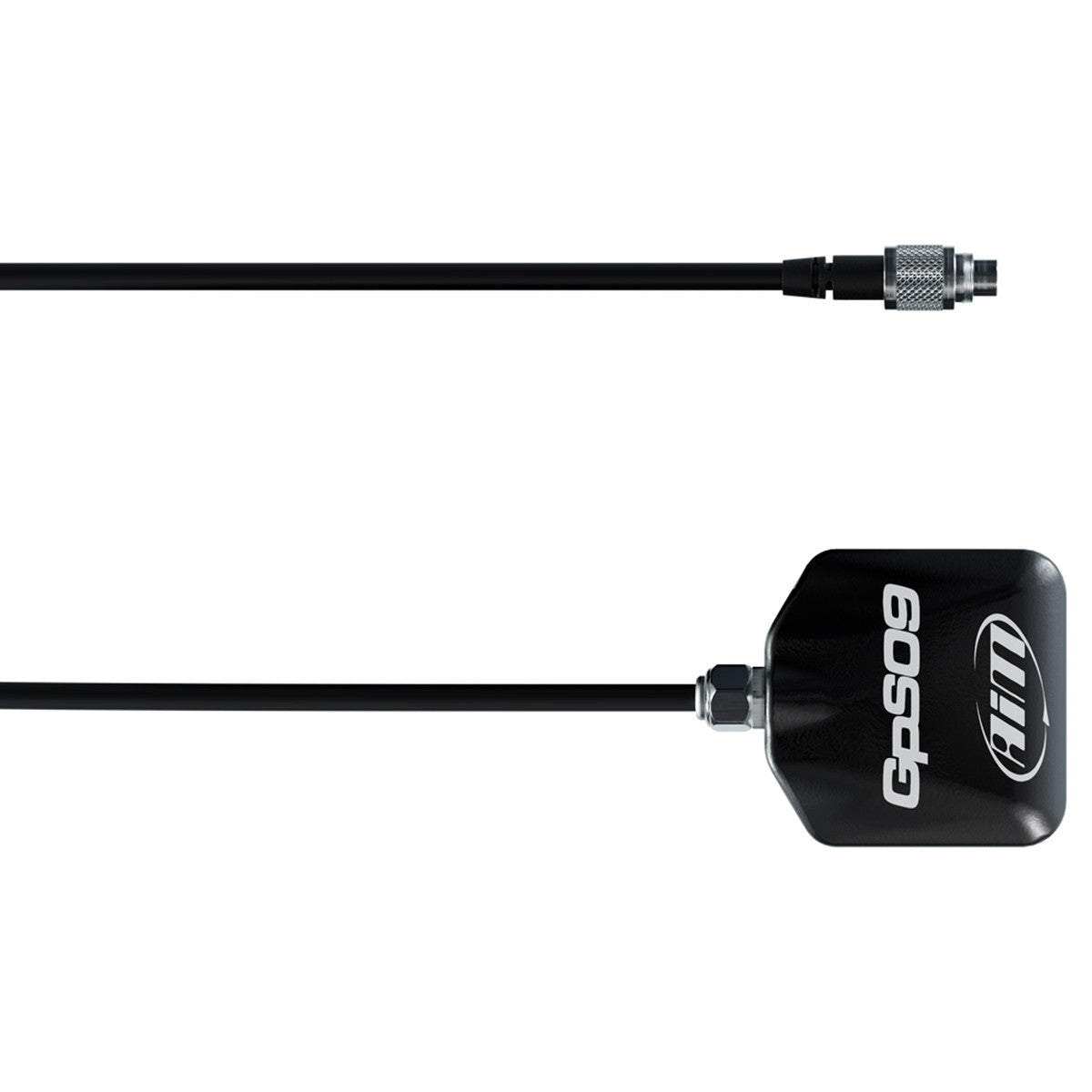

Link ECU AIM GPS Module for Digital Display Dashes

  • Sale
  • Regular price $349.00

Product SKU: LNK AIMGPS09

GPS technology represented a true revolution in racing data acquisition. Now another revolution has begun, thanks to GPS09 Module and Race Studio 3 software. As you start a track session you start sampling lap and split times as well as speed, position and acceleration... all the information you need for engine tuning as well as for improvingyour driving technique.

Up to four satellite systems: the greatest reliability and precision ever.

GPS09 is more precise: while GPS08 included GPS satellite signal and Global Navigation Satellite System (Glonass) signal, with GPS09 AiM added signals from BeiDou and Galileo satellite systems. GPS09 guarantees precision and reliability simply not comparable with the old generation of AiM GPS Modules.

Don’t settle for less than you deserve. To get better you have to know all details of your performance.GPS09 samples more than ten times per second position, speed and lateral/in-line acceleration at any point of the track: all data needed for a precise evaluation of your vehicle behaviour, which is the necessary step to improve your performance and achieve your goals.

Thanks to GPS09 even the predictive lap time will be much more reliable: in any moment of your race, you will know your time gap vs. your best lap with absolute precision.

Add-on GPS module for the MXS, MXG and MXT Strada Dashes.

Features

  • Sample lap and split times as well as speed, position and acceleration - all the information needed for engine tuning as well as for improving your driving technique.
  • Supports more than 2000 tracks worldwide
  • Easy to set-up and review data using Race Studio 3
  • Connects to dual satellites for redundancy and precision
  • Simple, plug and play connection to Strada MXS & MXG Dashes
  • A GPS module also provides the dash with a speed signal. This can be particularly useful for applications where wheel speeds are not available or utilised, such as boats.

Specifications

  • Dimensions: 64.8 x 53.2 x 19.7 mm, Weight: 60.5 g
  • You do not need to configure anything before going to the track: GPS09 will do it all by itself.
  • Satellite signal is locked very rapidly. A few seconds after switch-on, the GPS09 is ready to operate
  • An average of less than one meter tolerance, which means absolute precision in determining vehicle position in curves and when the finish line is very close to another track segment
  • 1.3m cable length.
