Product SKU: LNK MAP5EU

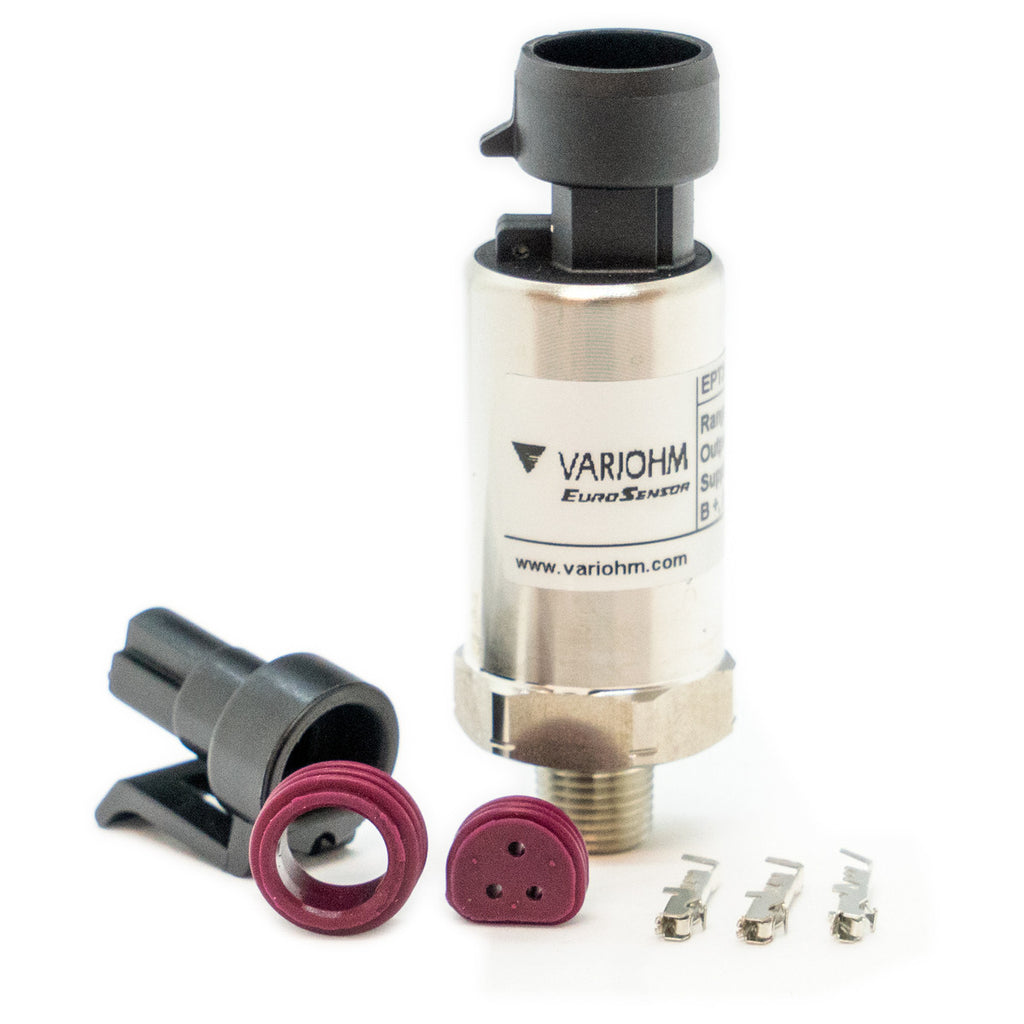

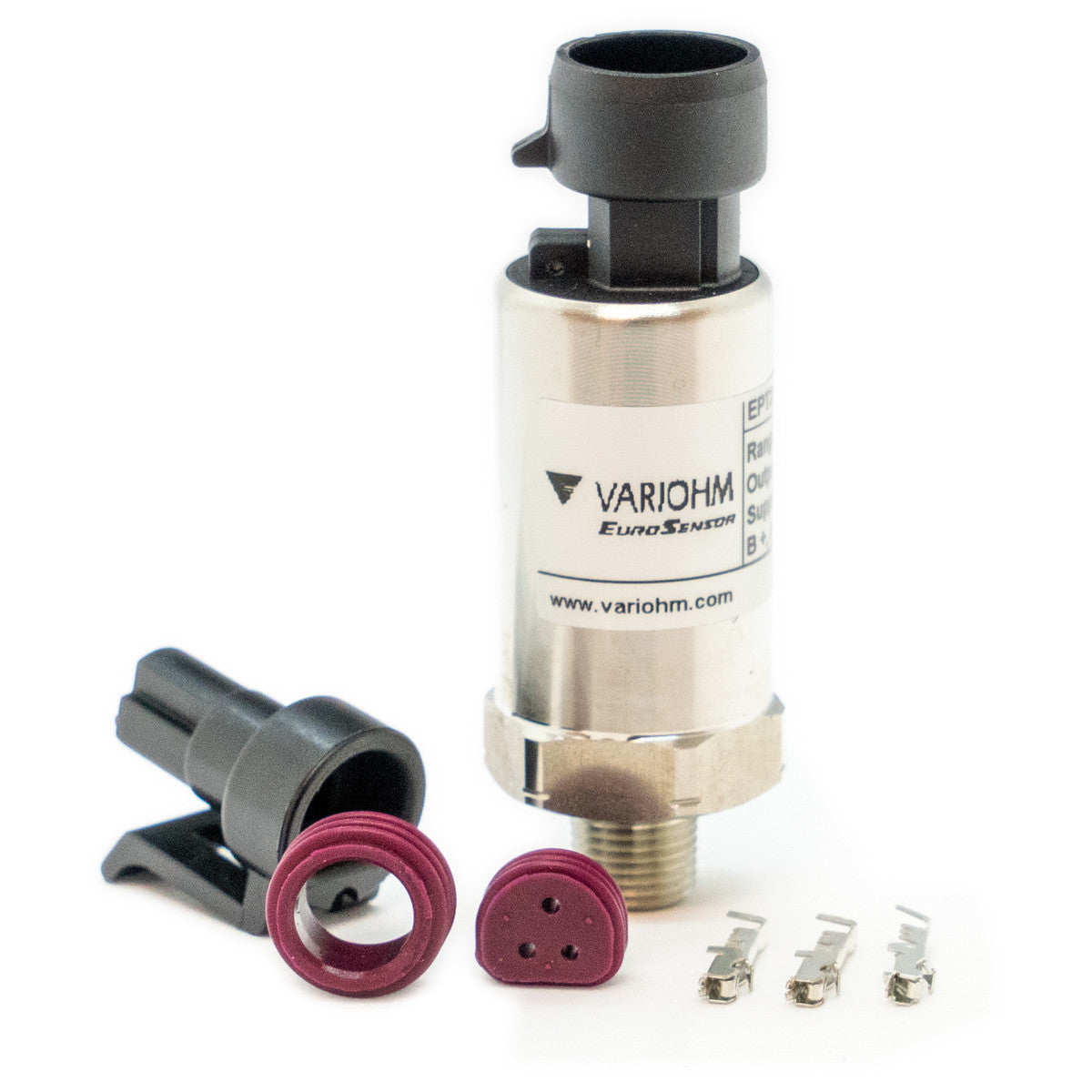

Link ECU MAP Sensors are designed to accurately and reliably read the manifold pressures in various motorsport applications. These sensors read manifold pressures in absolute pressure. Depending on your application, you can select the best MAP sensor for your setup.
- 5 Bar MAP sensor is suitable for turbocharged or supercharged applications running up to 4.0 Bar / 58 psi of boost.
- 8 Bar MAP sensor is suitable for turbocharged or supercharged applications running up to 7.0 Bar / 101 psi of boost.
Features
- Includes Plug and Pins
- Push wire through connector; crimp on terminal; pull wire/terminal back into connector
- Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’
Specifications
- Calibration - 0kpa = 0.5v, 800kpa = 4.5v
- PIN A = 0v
- PIN B = 5v
- PIN C = Signal
