Product SKU: LNK MXGRACE

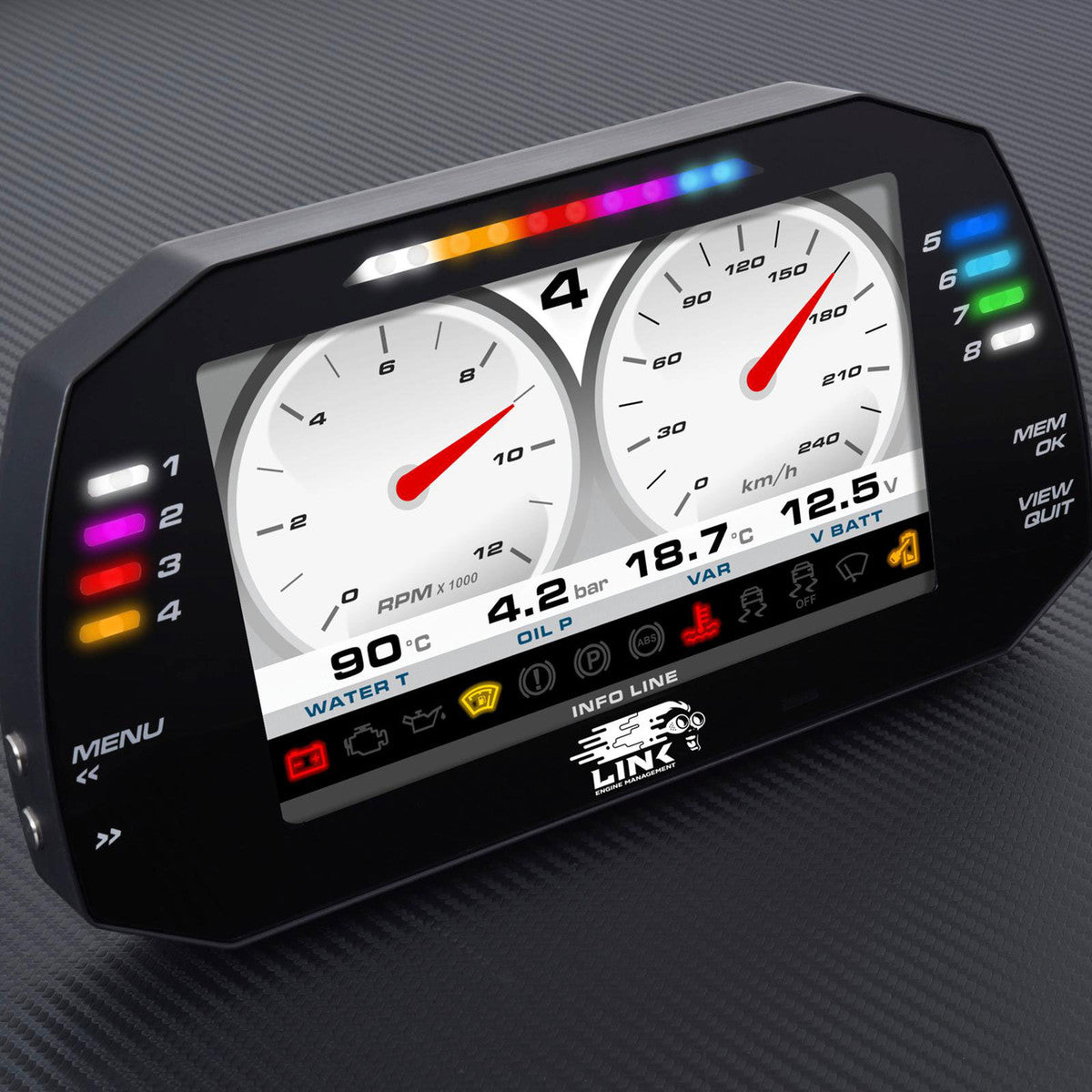

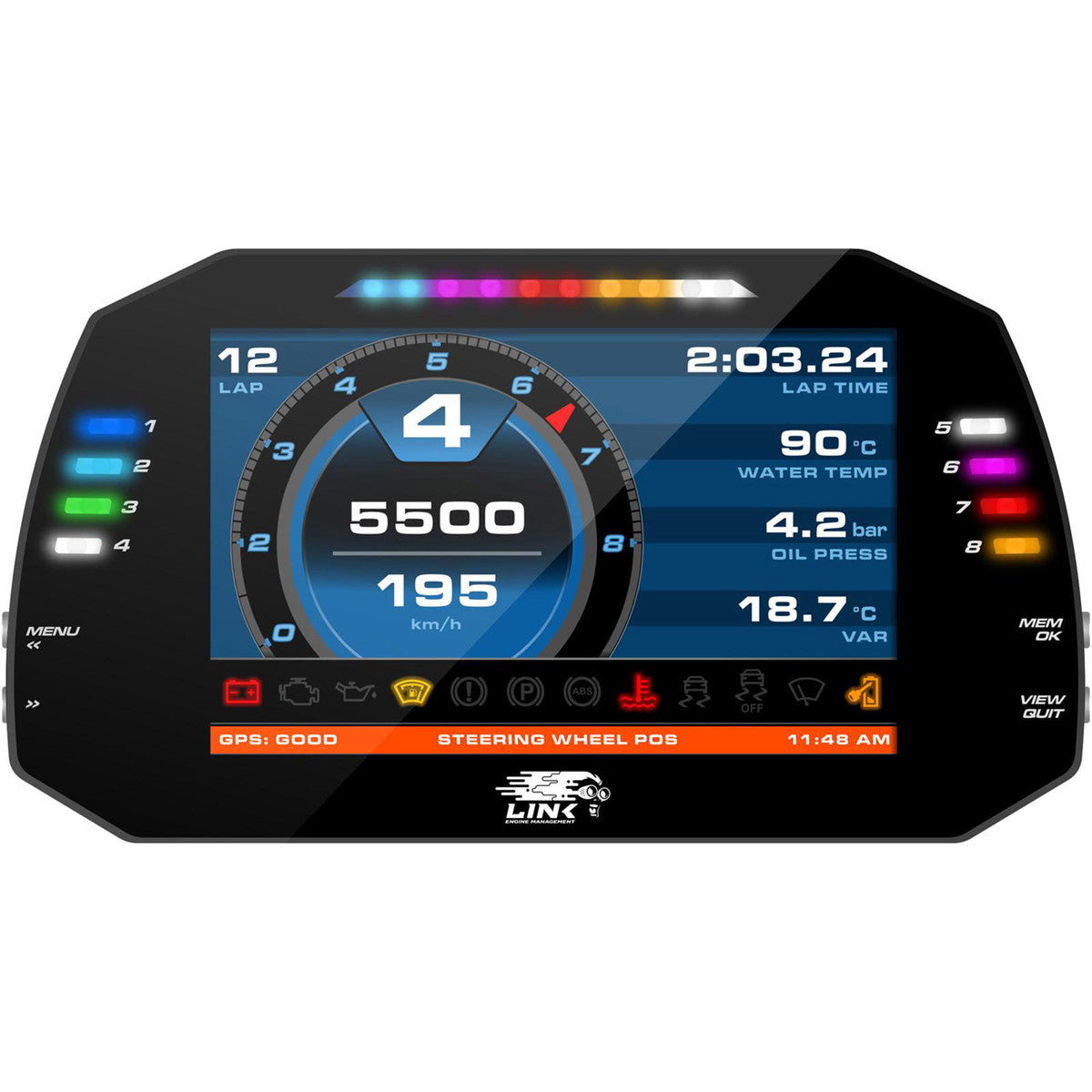

The Link MXG Strada is a full colour, 7-inch, high contrast TFT, dash display with ten RGB shift lights and eight customisable alarm LED lights down the side of the dash. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.
The 10 multi-coloured RGB shift lights on the MXG Strada can be customised to your liking to define the RPM threshold for each single gear. There are also eight LED lights located to the sides of the screen.

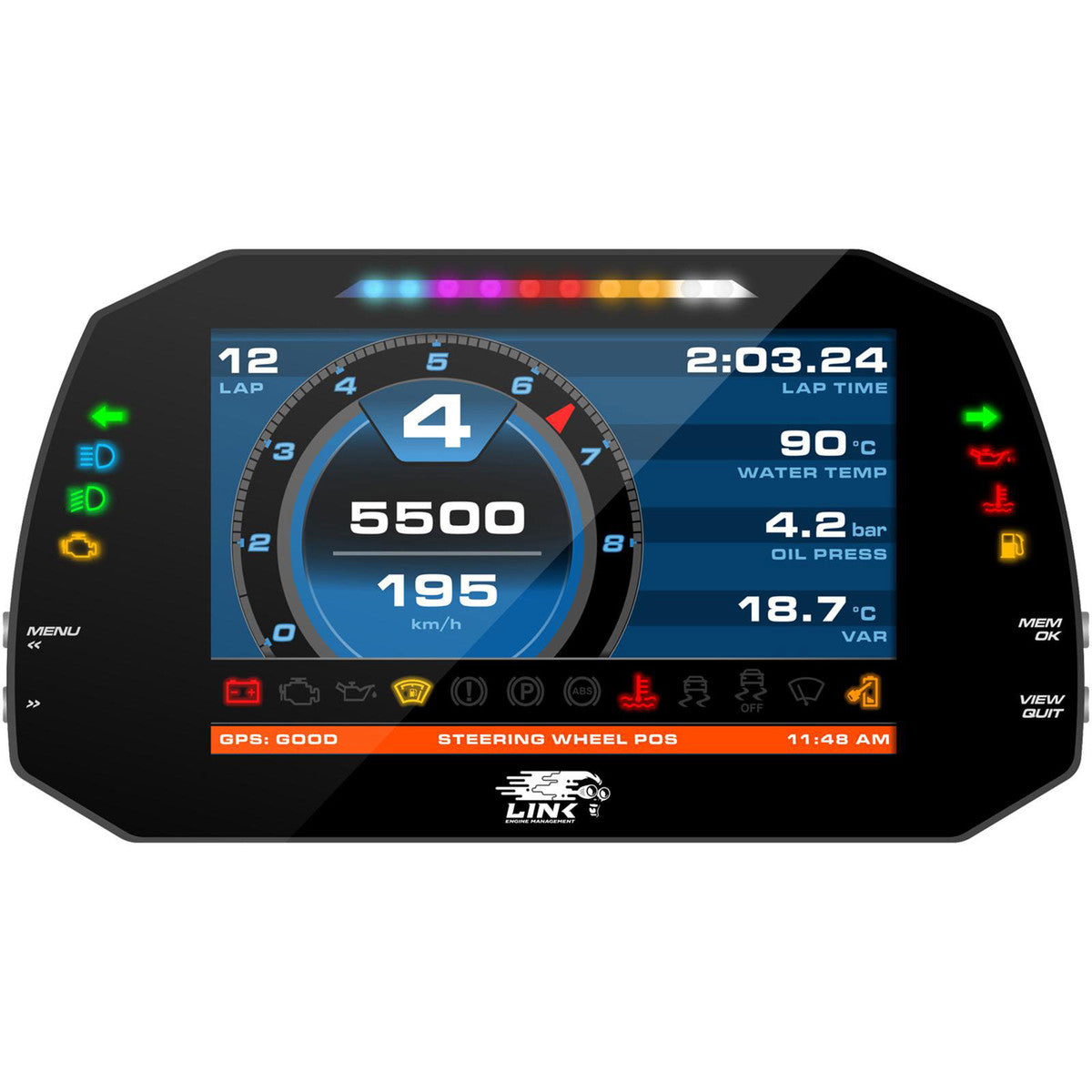

For the Street Edition, these include an indicator lights, headlight, high beam, check engine, oil pressure warning light, temperature warning light and fuel light. For the Race Edition, the LED lights are fully configurable RGB alarms.
You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information (GPS module available). You choose conditions and colours and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities.
The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.
The dash is pre-configured to work with all Link G4+/G4X Wire-In and Plugin ECU's. See features tab for more information. The Link MXG connects directly to your Link ECU via the pin kit and wiring provided in the box. The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.
NOTE: To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).
- Link MXG 1.2 Strada
- USB cable
- 14 pin standard wiring
- 23 pin connector + contacts
GPS module available separately.
- Power consumption: 400 mA
- Dash Dimensions: 237×127.6×26 mm
- Weight: 950 g
- Waterproof: IP65
